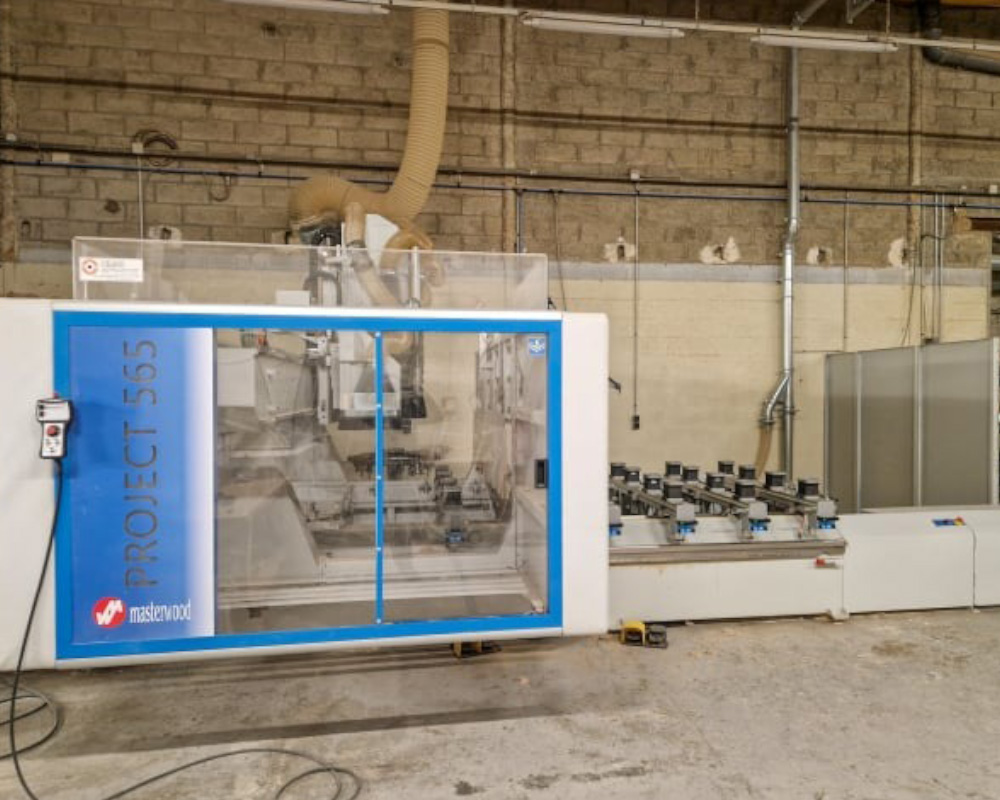

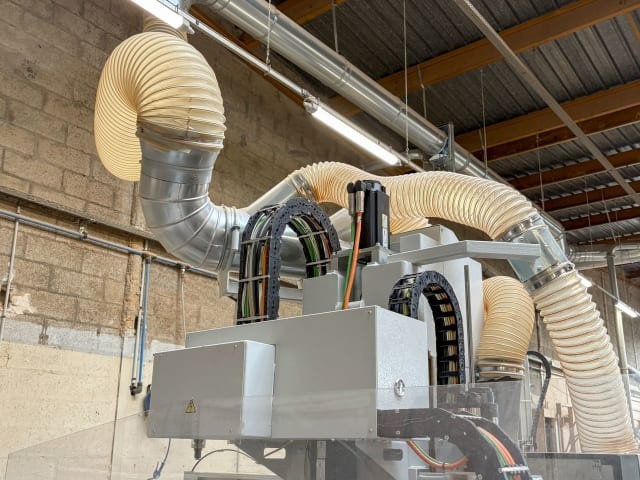

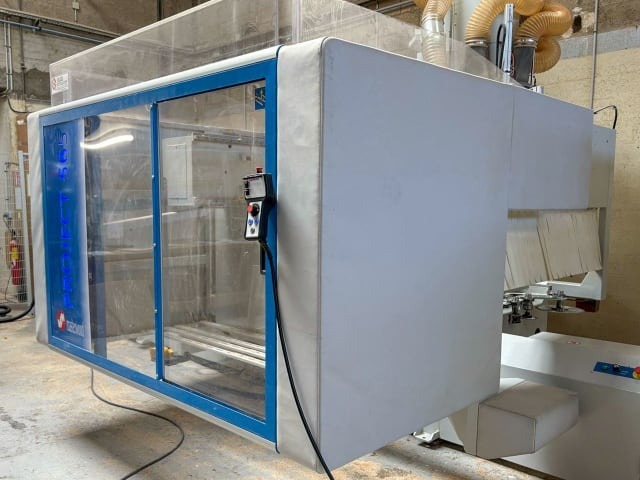

CNC PROJECT 565 – MASTERWOOD

TECHNICAL DATA

Working area X-axis: 3,600 mm
Working area Y-axis: 1,600 mm

X-axis travel: 4,800 mm
Number of working zones: 2

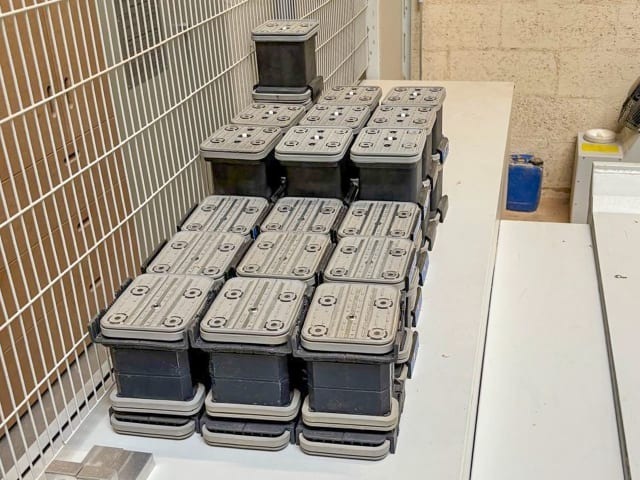

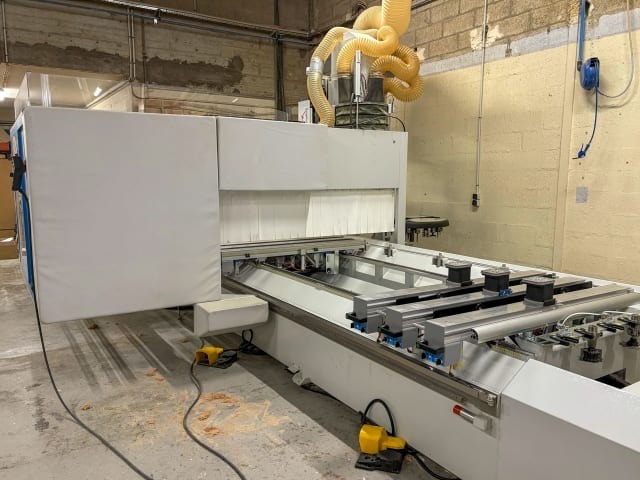

Worktable type: Bar table with vacuum cups
Number of vacuum bar rails: 6
Workpiece clamping system: Yes
Laser positioning device: Yes

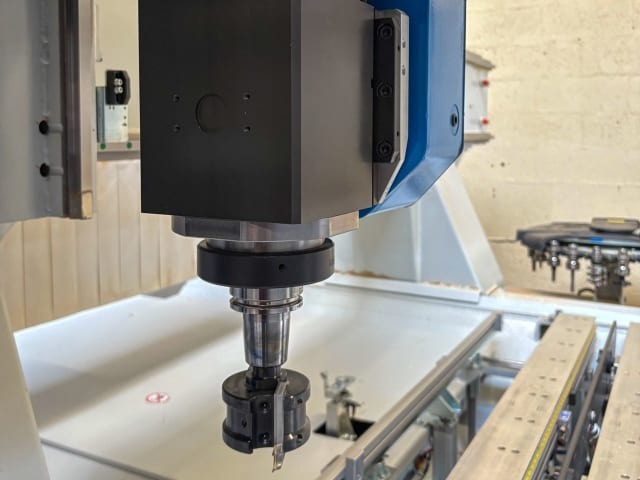

Main spindle power: 12 kW
Number of controlled axes: 5

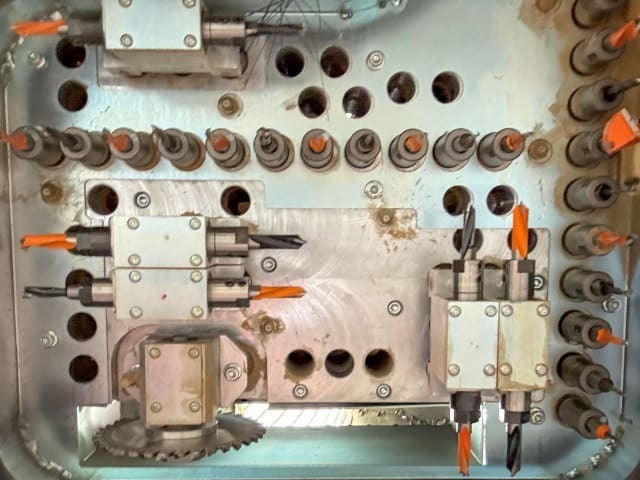

Total number of drilling spindles: 32

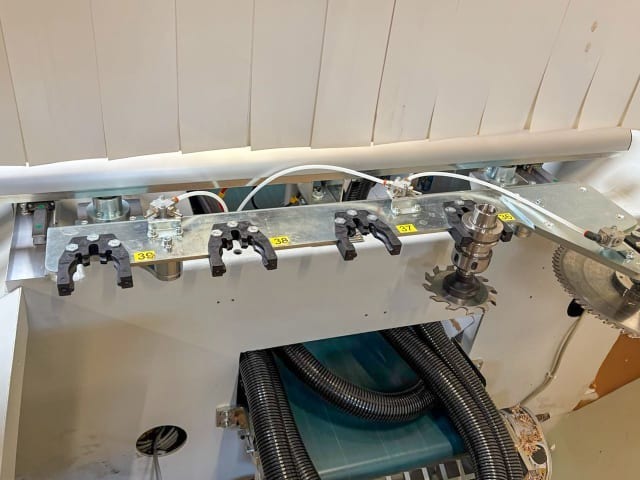

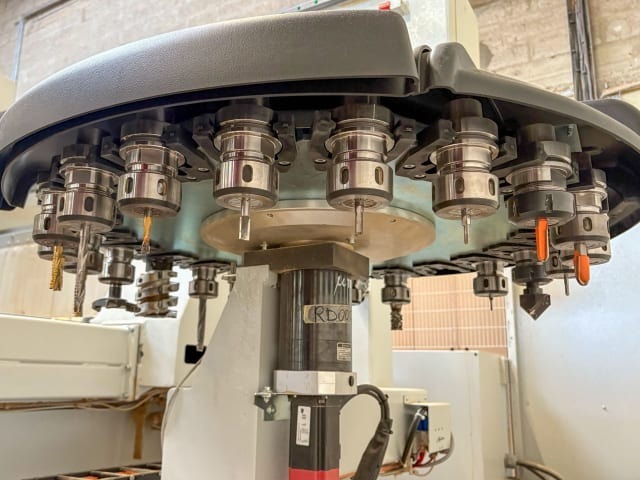

Tool change positions: 22

Vacuum pump: Yes
Number of pumps: 2
Individual pump capacity: 100 m³/h

Drilling operator unit: 1
