PANEL SAW D-400M
January 13, 2026
PANEL SAW D-400M A3P
January 13, 2026
PANEL SAW D-400M/A2
D-400M
The 400 Series is our flagship line for the professional industrial woodworking sector.
The D-400M is a manual panel saw designed for high performance and productivity.
TECHNICAL DATA

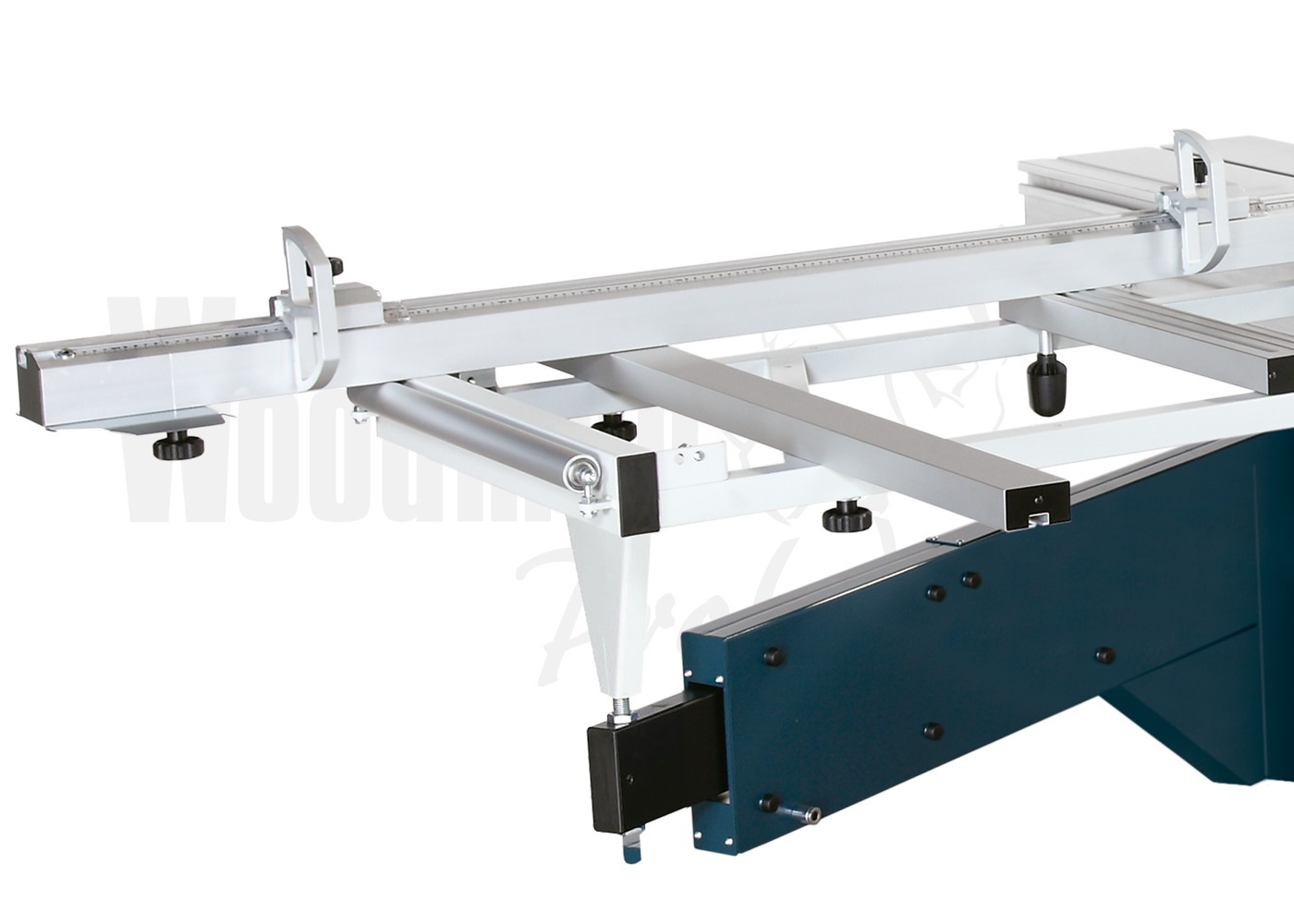

Sliding carriage size: 3,200 × 395 mm
Cast iron table size: 548 × 896 mm
Auxiliary table (parallel cutting): 952 × 896 mm
Auxiliary outfeed table: 320 × 830 mm
Total table size: 1,500 × 1,726 mm

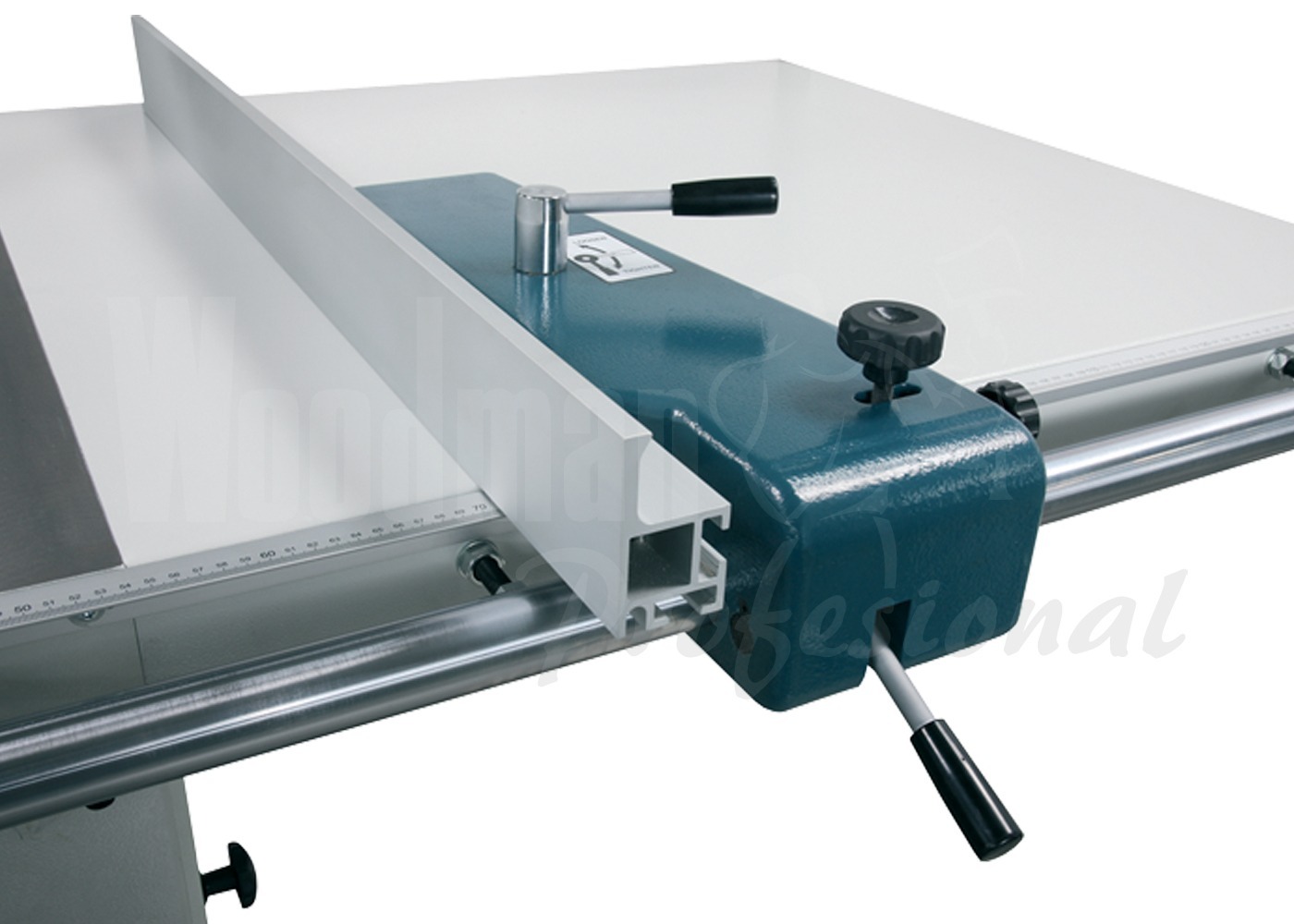

Parallel fence bar diameter: Ø 50 mm
Main blade diameter: Ø 400 mm
Main blade shaft diameter: Ø 30 mm
Max cutting height at 90°: 125 mm
Max cutting height at 45°: 90 mm
Main motor power: 7.5 HP
Blade speed (RPM): 3,000 / 4,000 / 5,000
Scoring blade diameter: Ø 120 mm
Scoring blade shaft diameter: Ø 20 mm
Scoring motor power: 1 HP
Scoring blade speed (RPM): 8,000
Parallel cutting capacity: 1,300 mm
Parallel fence adjustment: Manual
Blade tilt adjustment: Motorized
Blade height adjustment: Motorized
Machine weight: 980 kg
