CNC PROJECT 565 – MASTERWOOD
January 10, 2026

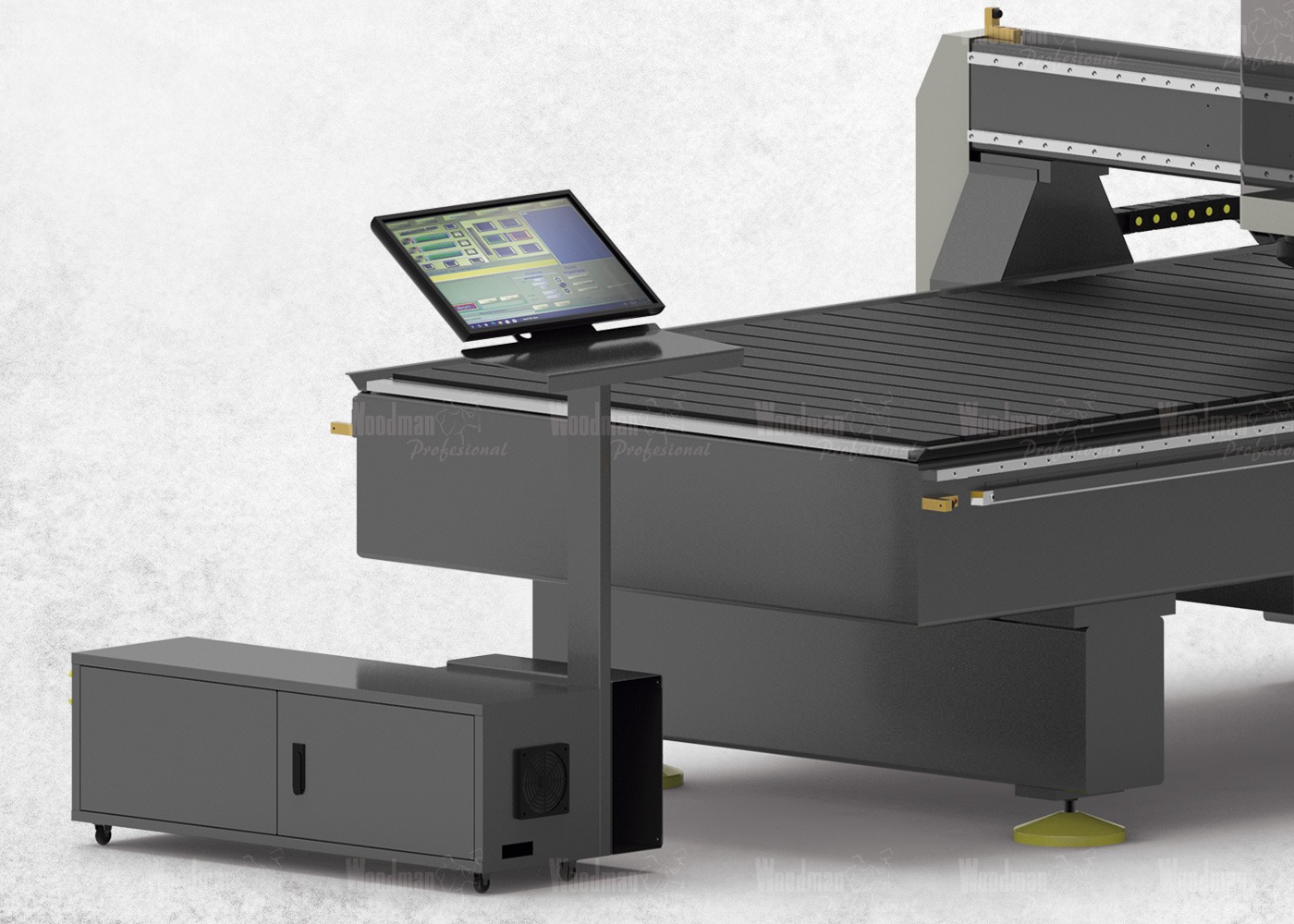

CNC MEX 1 DSP
Efficiency and productivity. Mex provides the user with a professional finish, featuring a compact design and a low investment cost.
MEX 1 DSP
MEX 1V DSP
The most basic models in the Mex range, equipped with DSP control for machine operation and a 4.5 kW milling motor. The V model includes a grid table and a vacuum pump.
Table size: 1,300 × 2,500 × 200 mm
Spindle motor power: 4.5 kW (ER25)
Controller: DSP
Drive motors: Stepper motor + gearbox
Table type: T-slot table
Tool sensor: Yes
Lubrication: Automatic
Machine dimensions: 2,940 × 1,985 × 1,800 mm
Weight: 980 kg
